PRODUCTS

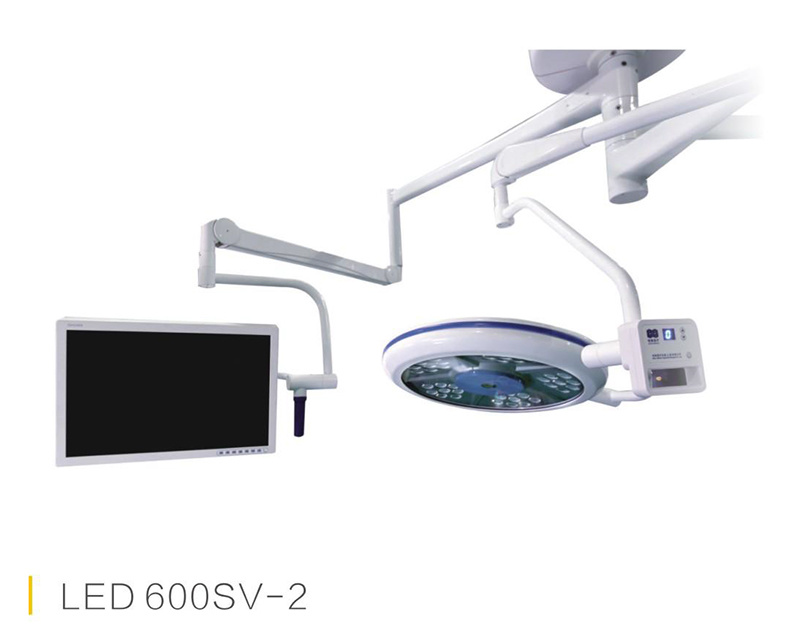

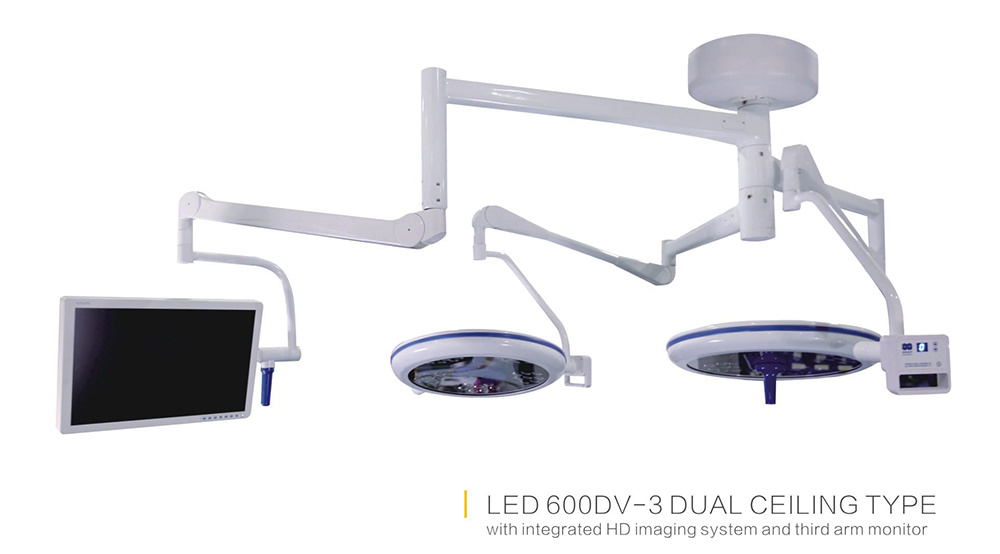

LED 600 OPERATING THEATRE LIGHTS
Item No.：
F-004
Summary
TEL: +86-574-83076915
E-mail：office@techartmed.com
Description
|
Optical and technical specications |
Main |
Satellite |
|
Intensity @ 1 meter (Lux) |
160,000 |
160,000 |
|
Field diameter (cm) |
28 |
28 |
|
Depth of the volume of light L1+L2 (cm) |
105 |
105 |
|
Color Rendering Index (CRI) (Ra) |
96 |
96 |
|
Color temperature (K) |
4300 |
4300 |
|
Intensity control (%) |
25-100 |
25-100 |
|
Type of intensity control |
By control panel |
By control panel |
|
Numbers of bulb |
40 pcs |
40 pcs |
|
Material of sterilizable handle |
PPSU |
PPSU |
|
Camera system specication |
HD Digital |
|
Sensor |
1/2.8" CMOS |
|
Effective pixels |
1,920(H)x1,080(V) |
|
Resolution |
1080P |
|
Aspect ratio |
16:9 |
|
S/N ratio (dB) |
52 |
|
Lens zoom |
30XOptical/16X Digital |
|
Aperture |
F1.4(wide)/F4.7(tele) |
|
Antiflicker |
Yes |
|
Autofocus |
Yes |
|
Type of iris |
Auto |
|
Signal outputs |
Network |
|
Local control |
N/A |
|
Remote control |
Yes |
|
Audio collection |
Optional |
|
Optical and technical specications |
Main |
|
Power supply input voltage (V) |
100-240 |
|
Power consumption (W) |
200 |
|
Frequency (Hz) |
50-60 |
|
Diameter of lighthead (mm) |
600 |
|
Analog video camera HD (Optional) |
Centrally integrated/separate arm |
|
Digital video camera HD (Optional) |
Centrally integrated/separate arm |
|
LED service life (hrs) |
50,000 |
|
2nd/3rd arm with monitor |
As per request |
|
Mobile type |
Yes |
|
Mobile type with emergency battery back-up (hrs) |
8 |
The LED 600 Operating Theatre Lights are specifically designed to meet the needs of medical professionals in any surgical environment. With their advanced lighting technology, these lights offer exceptional brightness and color rendering, ensuring accurate visualization of tissues and organs during procedures. The lights feature a unique adjustable illumination system, allowing precise control of the light intensity and focus. They are widely used in various medical specialties, including neurosurgery, cardiology, and orthopedics.
