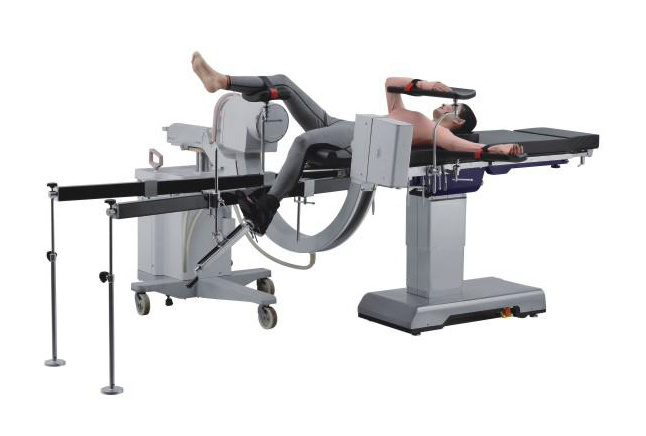

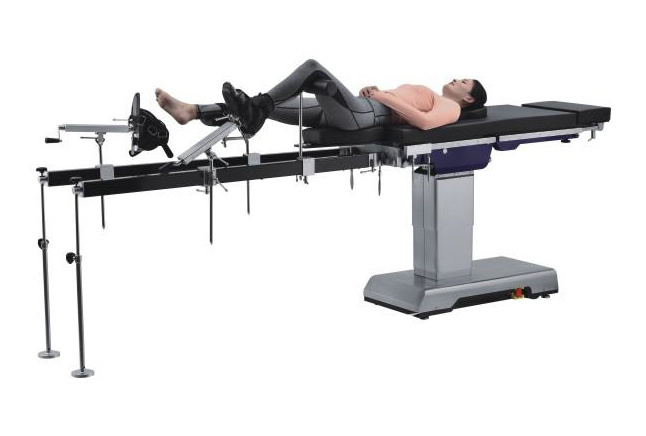

ET700S ELECTRO-HYDRAULIC OPERATING TABLE

Item No.：

A-003

Item No.：

ET700S

Summary

Developments made in the conjunction with doctors: this is one of the basic principles which has made TECHARTMED the world market leader for operating tables. Close cooperation and years of experience have resulted in tried and tested products which facilitate the work in the operating room and help to increase the safety and comfort of the patient. Best example: this table can maintain stability in any position even with extreme loads. The modular structure enables it to be adapted to match the size of the patient and in no time at all it can be equipped for any surgical discipline. A longitudinal shift of up 350mm makes the operating table even more versatile.

TEL: +86-574-83076915

E-mail：office@techartmed.com

Message

Description

DETAILS

1. Maximum 350mm motorised longitudinal shift for flexible use of the C-arm.
2. "EASY CLICK" for simple and quick module changes.

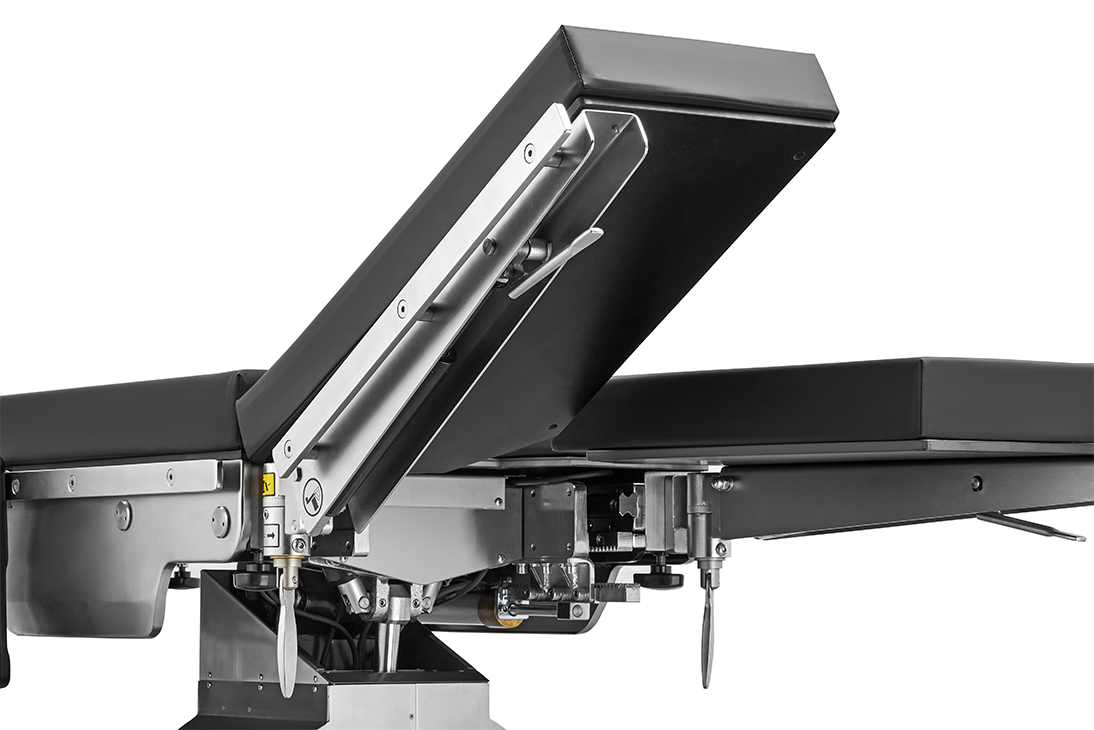

3. Leg plate: lmported gas spring for easy controls.
4. One button reposition function, designed and made specially for X-ray and C-arm use.
5. Double control system.
6. Built-in kidney bridge.
7. Two Joint head plate.

Product Description

Engineered for increasingly complex surgical scenes, ET700S comes with intelligent automatic control system satisfying various demands of general surgeries. Extra wide tabletop, extreme loading system, long horizontal sliding that can be suitable for both X-ray and C-arm. ET700S is an ideal electro-hydraulic operating table.

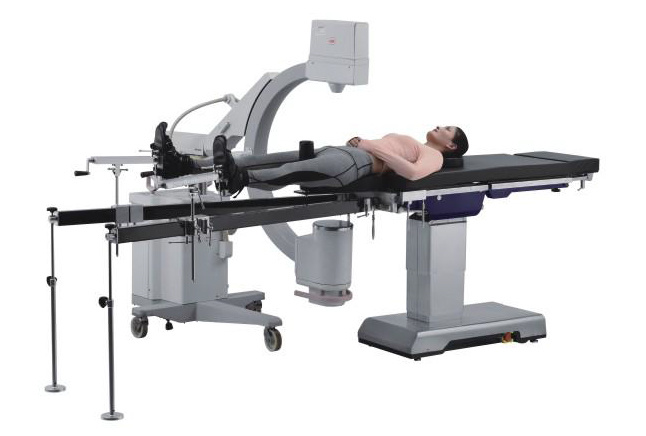

• Longitudinal slide up to 350mm for free access to C arm
• Extreme weight load capacity of 300kgs with highest safety and stability
• Memory pad with antistatic, waterproof design.
• Standard override panel control makes the control safer
• "EASY CLICK" leg plate control by electro-hydraulic and manual
• Battery power for 50-80 operations

Model	Length	Width	Tabletop lowest height	Elevation range
ET700S	≥2170mm	550mm	≤690mm	≥410mm

PARAMETER

ET700S Electro-hydraulic operating table

Movements		Model: ET700S
Tabletop trendelenburg	Reverse Trendelenburg	≥30°
Tabletop trendelenburg	Trendelenburg	≥30°
Lateral Tilt (Left And Right)		≥20°
Head plate	Up	≥45°
Head plate	Down	≥90°
Back plate	Up	≥85°
Back plate	Down	≥40°
Leg plate	Up	≥15°
	Down	≥90°
	Outward	≥90°
Kidney bridge elevation		110mm
Horizontal sliding		≥350mm
