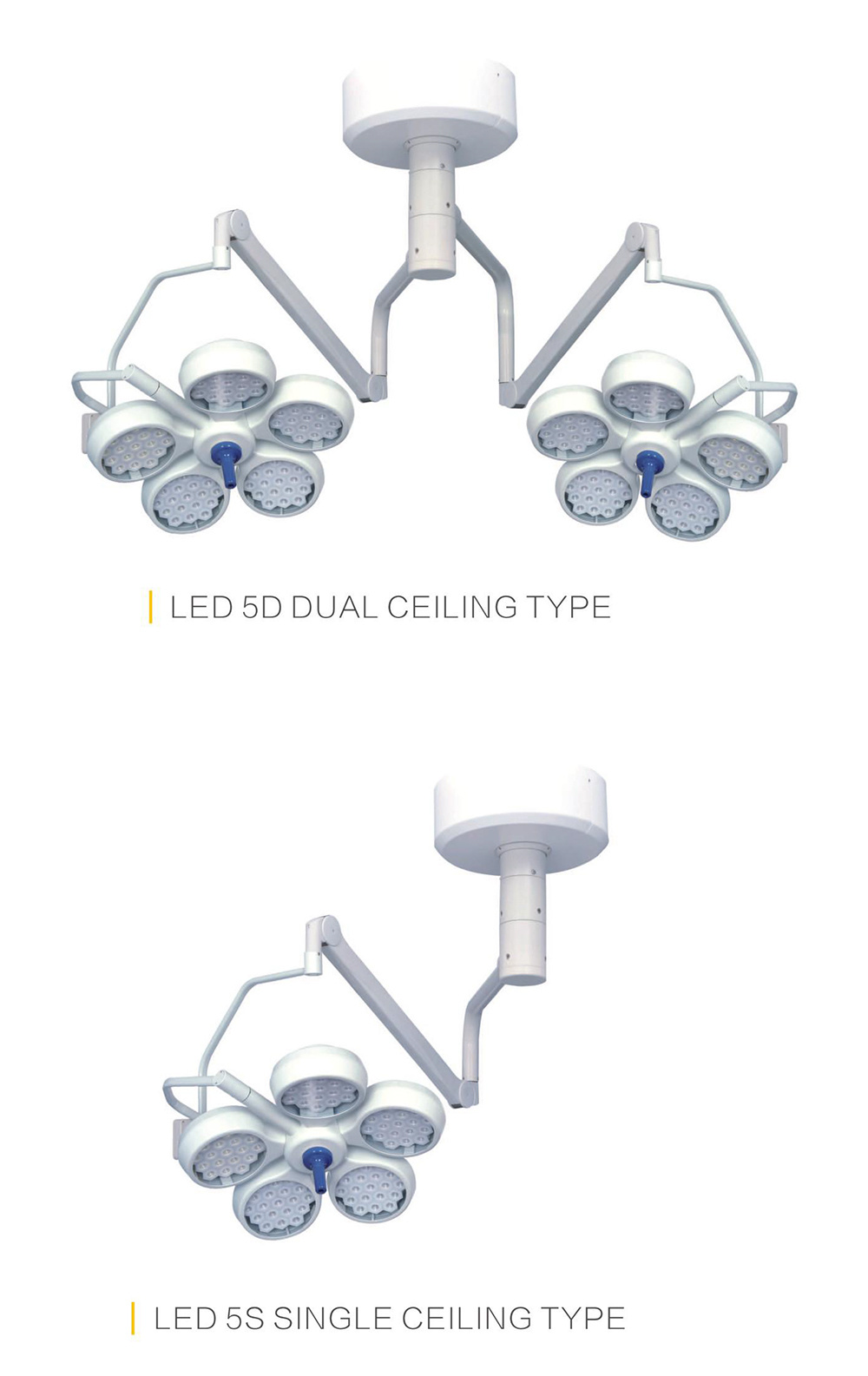

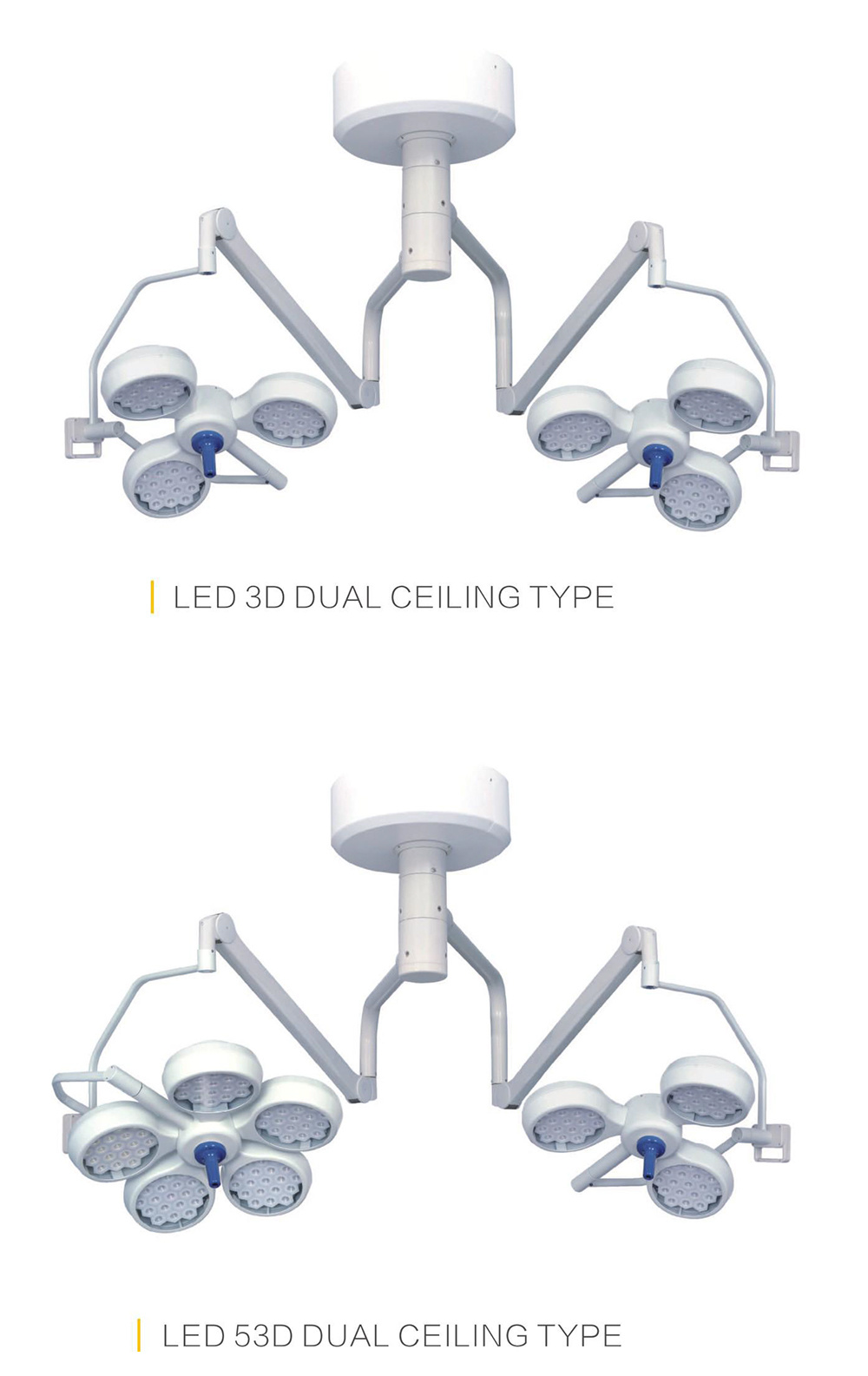

LED 3 AND LED 5 OPERATING THEATRE LIGHTS
Item No.：
F-002
Summary
TEL: +86-574-83076915
E-mail：office@techartmed.com
Description
User defined maximum illumination suitable for different surgery
We Ex-factory the lights with the maximum intensity at 160,000 lux for LED 5 and 100,000 lux for LED 3, but you can set up the maximum intensity by control panel for each light head any time as you wish. The maximum intensity you can set up for LED 5 is any figure in between 100,000 lux to 200,000 lux, and 40,000 lux to 140,000 lux for LED 3. After set-up, you can still control the intensity by control panel as usual for the adjustable range from 25% to 100%.
Perfect shadow free illumination
Five flower-shaped light cells installed in the specially calculated shape of the light head to provide the perfect shadow less illumination to surgeons for the comfortable operation.
Special design for the requirement of laminar flow operating rooms
The shape of the each cell of the lighthead guarantees the best air circulation vertically without any obstruction. The lights provide the best laminarflow circulation for the most popular operating rooms.
The latest generation of LED illuminance
We supply the lights with the latest generation of warm white LED illuminance to guarantee the best Color Rendering Index and Color Temperature which are silimarto the natural sun light at 12pm noon.
Advanced Full HD camera system
You can choose either an analog or digital camera installed at the centre of the light or on a separat arm. The video from both analog and digital camera can be finally viewed in your network PCs anywhere in the hospital. Live multimedia teaching in the conference room becomes just a simple and easy connection with a single network cable. The camera with CCD sensor to guarantee the true color, realistic and super resolution images on your monitor.
Sterilizable handle is made by PPSU
The sterilizable handle is made by PPSU plastic material which will not soften at the temperature up to 280 degree Celsius. This feature will prevent the mis -operation to cause the handle being heated distortion inside the high temperature Sterilizer.
|
Optical and technical specication |
LED 5 |
LED 3 |
|
Intensity @ 1 meter (Lux) |
160,000 |
100,000 |
|
Field diameter (cm) |
17-30 |
17-30 |
|
Depth of the volume of light L1+L2 (cm) |
110 |
105 |
|
Color Rendering Index (CRI)(Ra) |
96 |
96 |
|
Color temperature (K) |
4,300 |
4,300 |
|
Intensity control (%) |
25-100 |
25-100 |
|
Type of intensity control |
By control panel |
By control panel |
|
Type of field focusing control |
By sterilizable handle |
By sterilizable handle |
|
Numbers of LEDs |
95 |
57 |
|
Electrical and mechanical specication |
LED 5 |
LED 3 |
|
Power supply input voltage (V) |
100-240 |
100-240 |
|
Power consumption (W) |
320 |
192 |
|
Frequency (Hz) |
50-60 |
50-60 |
|
Diameter of lighthead (mm) |
700 |
700 |
|
Analog video camera HD (Optional) |
Centrally integrated/separate arm |
Centrally integrated/separate arm |
|
Digital video camera HD (Optional) |
Centrally integrated/separate arm |
Centrally integrated/separate arm |
|
LED service 肝e (hrs) |
50,000 |
50,000 |
|
2nd/3rd arm with monitor |
As per request |
As per request |
|
Mobile type |
Yes |
Yes |
|
Mobile type with emergency battery back-up (hrs) |
3 |
5 |
|
Camera system specication |
HD Digital |
HD Analog |
|
Sensor |
1/2.8" CMOS |
1/4" CCD |
|
Effective pixels |
1,920(H)x1,080(V) |
752(H) x582(V) |
|
Resolution |
1080P |
720P |
|
Aspect ratio |
16:9 |
4:3 |
|
S/N ratio (dB) |
52 |
52 |
|
Lens zoom |
30XOptical/16X Digital |
43XOptical/16X Digital |
|
Aperture |
F1.4(wide)/F4.7(tele) |
F1.65(wide)/F3.7(tele) |
|
Antiflicker |
Yes |
Yes |
|
Autofocus |
Yes |
Yes |
|
Type of iris |
Auto |
Auto |
|
Signal outputs |
Network |
Video, Network by control box |
|
Local control |
N/A |
Yes |
|
Remote control |
Yes |
Yes |
|
Audio collection |
Optional |
Optional |
The LED 3 and LED 5 Operating Theatre Lights are cutting-edge lighting solutions designed for the healthcare industry. These lights deliver exceptional brightness and precision, ensuring optimal visibility during surgical procedures. With their advanced LED technology, they provide a consistent and high-quality light source, reducing eye strain for medical professionals. These lights also come with adjustable intensity, color temperature, and focus, allowing surgeons and nurses to customize the lighting according to their specific needs. Their sleek design seamlessly integrates into any operating room, providing a sterile and modern aesthetic. Trust the LED 3 and LED 5 Operating Theatre Lights to enhance surgical precision and improve patient outcomes.
